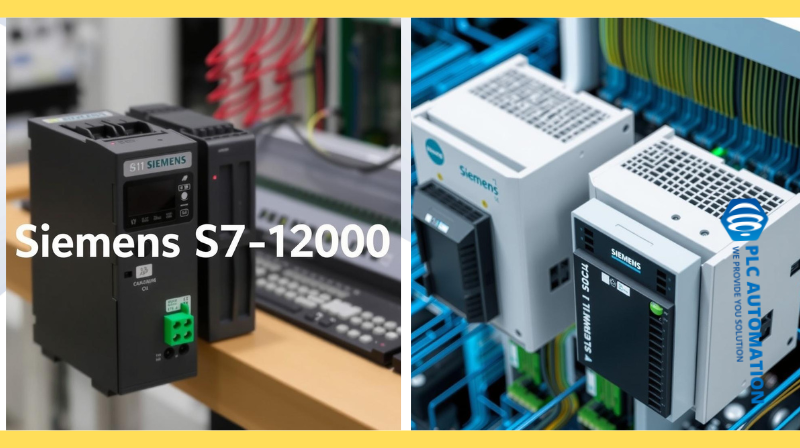

Choosing the Right Siemens S7-1200 PLC: CPU Models and Use Cases Explained
- by PLC
- Jul 13, 2025
Introduction
Choosing the right PLC for your automation project doesn’t have to be complicated. If you’re looking for a solution that’s reliable, flexible, and easy to use, the Siemens S7-1200 series is a strong contender. Known for its modular design and seamless integration, this PLC family fits a wide range of applications—whether you’re automating a small process or managing more complex machine operations.
In this guide, we’ll walk you through the different Siemens S7-1200 CPU models, highlight what each one offers, and share practical use cases to help you decide which model suits your needs best. Whether you're just getting started or optimizing an existing setup, we’re here to make that decision easier for you.
What is the Siemens S7-1200 PLC?
The Siemens S7-1200 is part of the SIMATIC automation system, designed specifically for compact, modular control solutions. It offers seamless communication, scalability, and high-speed processing, making it a preferred choice in industries like manufacturing, packaging, food processing, building automation, and more.
Key Benefits:
- Modular architecture with flexible expansion modules
- Built-in Ethernet ports for easy integration
- Integrated technology functions such as motion control and PID
- TIA Portal compatibility for streamlined programming and diagnostics
- High-speed I/O processing for real-time control
Overview of S7-1200 CPU Models
There are several CPU models in the Siemens S7-1200 family, each designed for different performance needs. Below is a breakdown of the most common models:
1. CPU 1211C – Compact Control for Simple Automation Tasks
The CPU 1211C is the most compact and entry-level processor in the Siemens S7-1200 family. It comes equipped with 6 digital inputs (DI) and 4 digital outputs (DO), along with 2 analog inputs (AI), making it suitable for applications with limited I/O requirements. The CPU also features 50 KB of memory, which is sufficient for basic control logic and simple machine instructions. With a built-in PROFINET port, it enables seamless communication with HMIs and other PLCs, offering ease of integration into small systems. This model is perfect for beginners, educational institutions, or industrial applications such as lighting systems, simple conveyor belts, and HVAC motor control, where performance demands are low but reliability and ease of use are essential. It's cost-effective and serves as a solid foundation for expanding into more complex systems.
2. CPU 1212C – Reliable Processing for Low-to-Mid Level Machines
The CPU 1212C offers increased performance and I/O capabilities compared to the 1211C, making it a strong choice for light industrial automation. It includes 8 digital inputs and 6 digital outputs, along with 2 analog inputs. With a memory capacity of 75 KB, this PLC can handle more advanced control programs, including logic for multiple components and subsystems. One of its significant advantages is expandability: it supports up to 2 signal boards and 3 communication modules, enabling connectivity with multiple devices or subsystems. It's best suited for packaging equipment, automated sorting systems, and small assembly units, where moderate computational power and flexible communication capabilities are essential. Whether you're building a compact production cell or automating standalone equipment, CPU 1212C provides a balanced combination of performance, scalability, and affordability.
3. CPU 1214C – Scalable Power for Mid-Sized Automation Systems
The CPU 1214C is a high-performing model tailored for mid-range automation needs, offering 14 digital inputs, 10 digital outputs, and 2 analog inputs, which can support a broader range of sensors and actuators. With 100 KB of user memory, this PLC can execute more complex control algorithms, store additional variables, and manage longer execution cycles efficiently. What sets this CPU apart is its expandability—it supports up to 8 signal modules, allowing integrators to significantly increase the I/O count as needed. This makes it an excellent fit for industries involving automated material handling, bottling and packaging plants, and modular manufacturing systems, where flexibility and higher I/O density are required. The CPU 1214C is a go-to solution when you want to maintain a compact footprint without sacrificing performance and when future expansion is a consideration.
4. CPU 1215C – Integrated Motion Control for Advanced Machinery
The CPU 1215C builds on the foundation of the 1214C, adding key motion control capabilities that make it indispensable for automated systems with dynamic requirements. It includes 14 digital inputs, 10 digital outputs, 2 analog inputs, and a robust 125 KB memory for sophisticated logic operations and motion routines. One of the standout features is the built-in high-speed counters (HSC) and pulse outputs, enabling precise control of servo drives, stepper motors, and encoders. This makes it an ideal choice for textile machinery, CNC machines, robotic arms, and automated inspection systems, where synchronization, speed regulation, and real-time feedback are critical. Its modularity and performance enable developers to implement multi-axis motion control in compact machines, ensuring high throughput without compromising on control accuracy or system responsiveness.
5. CPU 1217C – Heavy-Duty Control for Complex Automation Networks
The CPU 1217C stands at the top of the S7-1200 line, designed for complex industrial applications with intensive processing demands. It comes with 16 digital inputs and 16 digital outputs, allowing it to interface with a large number of field devices. With a generous 150 KB of program memory, it can handle advanced algorithms, data logging, real-time monitoring, and multi-tasking with ease. Beyond the I/O and memory, this model features built-in PROFINET and supports optional PROFIBUS communication, making it ideal for distributed control systems and integration into larger SCADA networks. Its use cases include automotive production lines, chemical processing units, packaging plants, and multi-machine synchronized operations, where system complexity and performance requirements are significantly higher. With this CPU, engineers can develop multi-layered logic systems that are both robust and scalable, ensuring efficiency and future-proofing for high-end industrial setups.
Expansion Modules and Flexibility
One of the standout features of the S7-1200 series is its expandability. You can easily integrate:
- Signal Boards (SBs) – for extra I/O points
- Communication Modules (CMs) – for additional communication protocols like RS485 or RS232
- Signal Modules (SMs) – for analog/digital input and output expansions
This flexibility ensures that you can scale your system without replacing the core CPU, making it future-proof and cost-effective.
Communication Capabilities
All S7-1200 CPUs come with PROFINET support, making integration with HMI (Human Machine Interface) panels, SCADA systems, and other PLCs seamless. Some models also support:
- Modbus TCP/RTU
- Ethernet/IP
- Web server functionality for remote monitoring
- Data logging and diagnostics tools via TIA Portal
Advanced communication features allow real-time control, data exchange, and diagnostics, making your system smarter and more responsive.
Software Support: TIA Portal
The S7-1200 series works seamlessly with Siemens TIA Portal—a unified engineering framework. With it, users can:
- Program PLC logic with LAD, FBD, or STL languages
- Configure hardware
- Simulate PLC operations before deployment
- Monitor and diagnose faults in real time
- Create HMI screens for operator interfaces
TIA Portal’s intuitive interface significantly reduces engineering time and error rates, especially in complex setups.
1. I/O Requirements
- Begin by identifying how many inputs and outputs (I/Os) your automation system needs. This includes sensors, actuators, switches, motors, and more.
- Decide whether your project needs digital I/O (for simple on/off signals), analog I/O (for variable data like temperature, speed, or pressure), or high-speed I/O (for motion control or real-time synchronization).
- If you're handling only a few devices, a basic CPU with built-in I/Os may be sufficient.
- However, for more complex systems or those with room to expand, opt for a CPU that supports modular expansion through signal boards or signal modules.
- Planning your I/O requirements in advance helps avoid hardware bottlenecks and ensures your PLC can grow as your needs evolve.
2. Performance Needs
- Every application has different processing demands. Simple automation tasks, such as controlling lights or a basic conveyor system, don’t need much computational power.
- More advanced processes—like real-time motor control, PID loops, or multi-axis movement—require a faster processor with advanced features.
- CPUs like the S7-1200 1215C or 1217C offer high-speed counters and pulse outputs, which are essential for motion control applications.
- Evaluate how fast your system needs to respond to input signals and whether multiple control processes will run simultaneously.
- Selecting a CPU that matches your performance needs ensures stable, accurate, and reliable automation without overloading the controller.
3. Communication Protocols
- Modern industrial systems rarely operate in isolation. Your PLC may need to communicate with HMIs, SCADA systems, drives, or other PLCs.
- All S7-1200 CPUs come with built-in PROFINET, allowing easy integration over Ethernet.
- However, if your system needs to support MODBUS, PROFIBUS, Ethernet/IP, or serial interfaces (like RS232 or RS485), you’ll need a CPU that can accommodate communication modules.
- Additionally, for remote monitoring and diagnostics, features like a web server or data logging might be essential.
- Ensuring proper communication compatibility upfront helps in seamless integration and future scalability of your automation network.
4. Scalability
- It’s important to think long-term. Will your system stay the same size, or will it grow over time?
- If expansion is likely, choose a CPU that allows for modular upgrades, such as adding I/O modules, communication ports, or function-specific boards.
- The S7-1200 series supports scalable architecture, making it ideal for phased automation where the project is deployed in stages.
- A scalable CPU protects your investment, allowing your system to evolve with changing demands without needing a complete replacement.
- Flexibility in design helps reduce future upgrade costs and keeps your automation system competitive and up to date.
5. Budget Constraints
- While it’s tempting to go for the most powerful CPU, that’s not always necessary or cost-effective.
- Carefully assess what your application truly requires. For instance, if your task involves only simple switching or monitoring, investing in a high-end CPU may be overkill.
- The S7-1200 range is designed with cost efficiency in mind, offering a variety of models to match different budgets and use cases.
- Consider not only the initial CPU cost but also the cost of additional modules, programming time, and future upgrades.
- Striking the right balance between functionality and price helps ensure a smart investment—one that performs reliably without overspending.
Use Case Summary Table
| CPU Model | Ideal For | I/O Capacity | Motion Control | Memory |
|---|---|---|---|---|
| 1211C | Small systems | Low | No | 50 KB |
| 1212C | Basic machines | Medium | No | 75 KB |
| 1214C | Mid-sized plants | High | No | 100 KB |
| 1215C | Machines with motion | High | Yes | 125 KB |
| 1217C | Complex automation | Very High | Yes | 150 KB |
Final Thoughts
The Siemens S7-1200 PLC family delivers unmatched reliability, flexibility, and performance for modern industrial automation needs. Whether you are designing a new system or upgrading an old one, choosing the right CPU model is crucial to ensure optimal performance and scalability.
At PLC Automation Group, we offer a full range of Siemens S7-1200 PLCs, expansion modules, and expert technical support to help you select and implement the best automation solution. As a trusted supplier of genuine industrial automation parts, we are here to power your business with precision and innovation.
Browse our Siemens S7-1200 collection today and take your automation to the next level.
